Fully Automatic Sorting Machine

Product number: 1911

Price on request

Do you have further questions about this article?

Product information "Fully Automatic Sorting Machine"

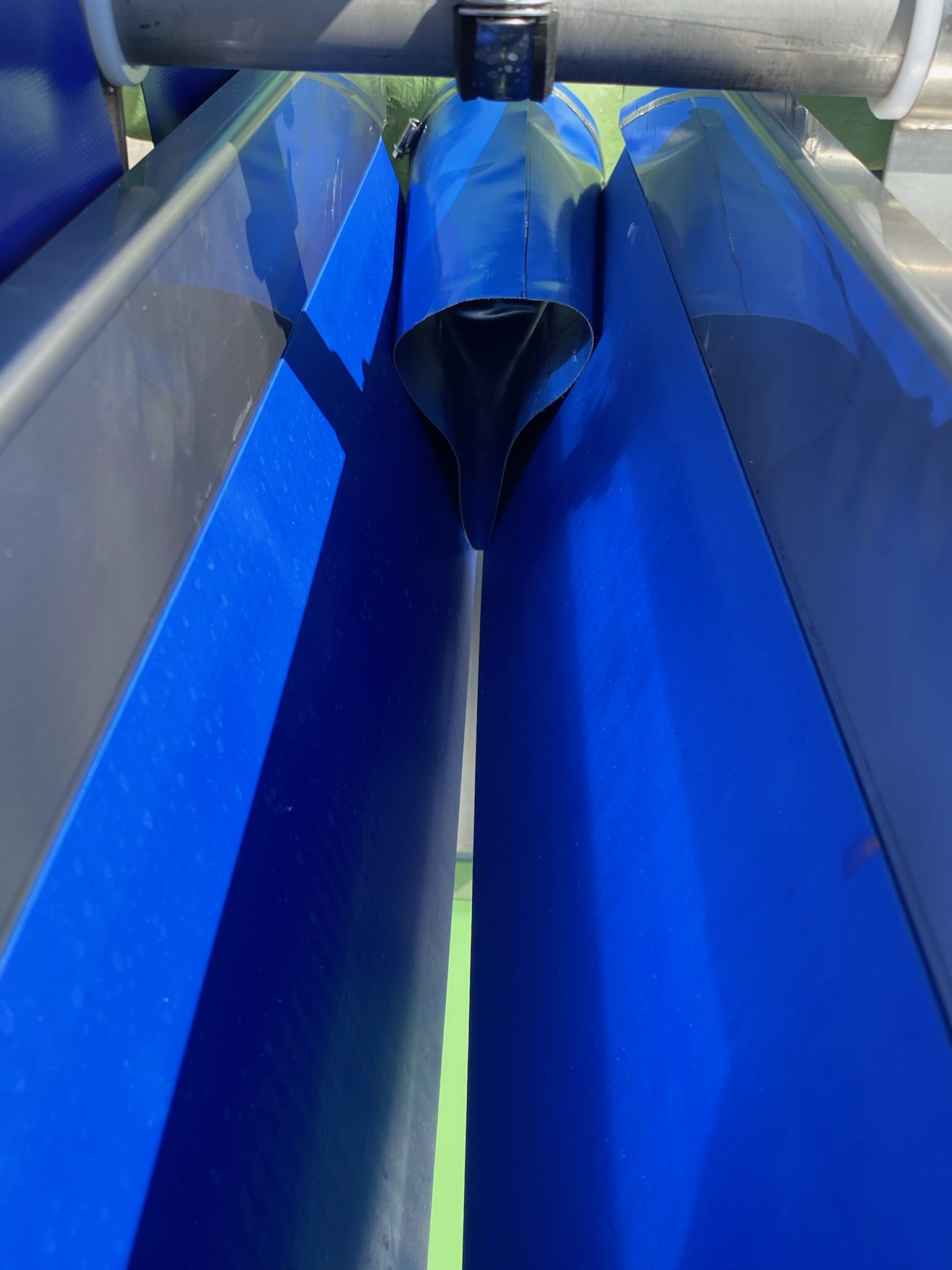

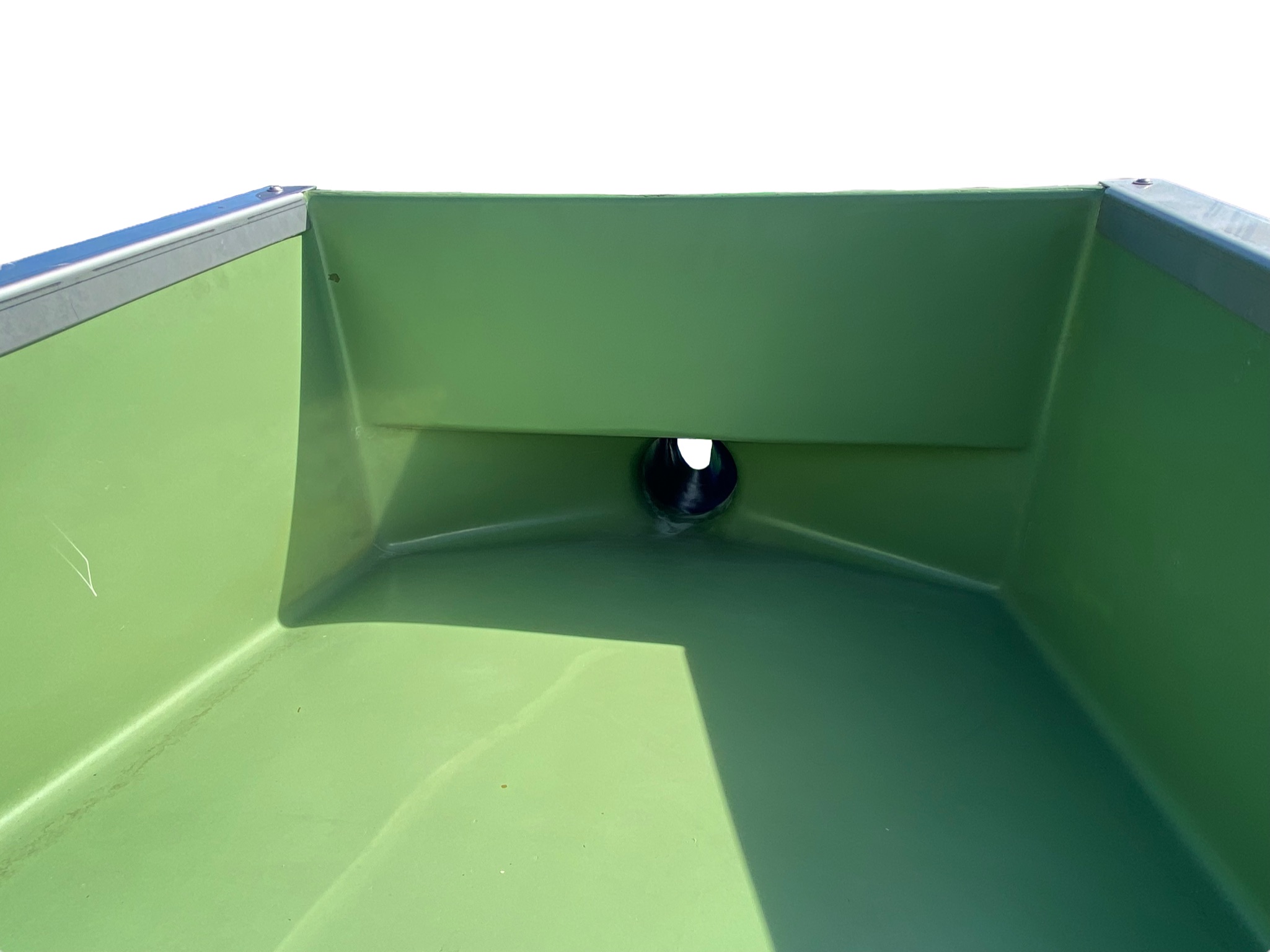

On a smooth conveyor belt the fish are gently guided along a round profile until they fit through the adjusted gap and drop into the funnel below. They are led into the right pond or tank through the funnels.

Advantages:
- very gentle operation and simple adjustment
- lightweight design
- pole put down – automatic brake
- easy water feed
- great stability
- removable inlet funnel

Capacity:
Size Throughput                     hour                            Number of size settings
Spawn 8/10 cm                  800 / 1200 kg                                4
Small trout 10/20 cm         1200 / 3000 kg                               4
Trout 20/30 cm                3000 / 4600 kg                                4

Sorting Machine:
Length: 3500 mm
Width: 1000 mm
Height: 1180 mm
Weight: 150 kg
Motor Power: 0,15 KW
Sorting channel: 4 piece
Outlet pipes: 8, 1 on each side of the 4 channels

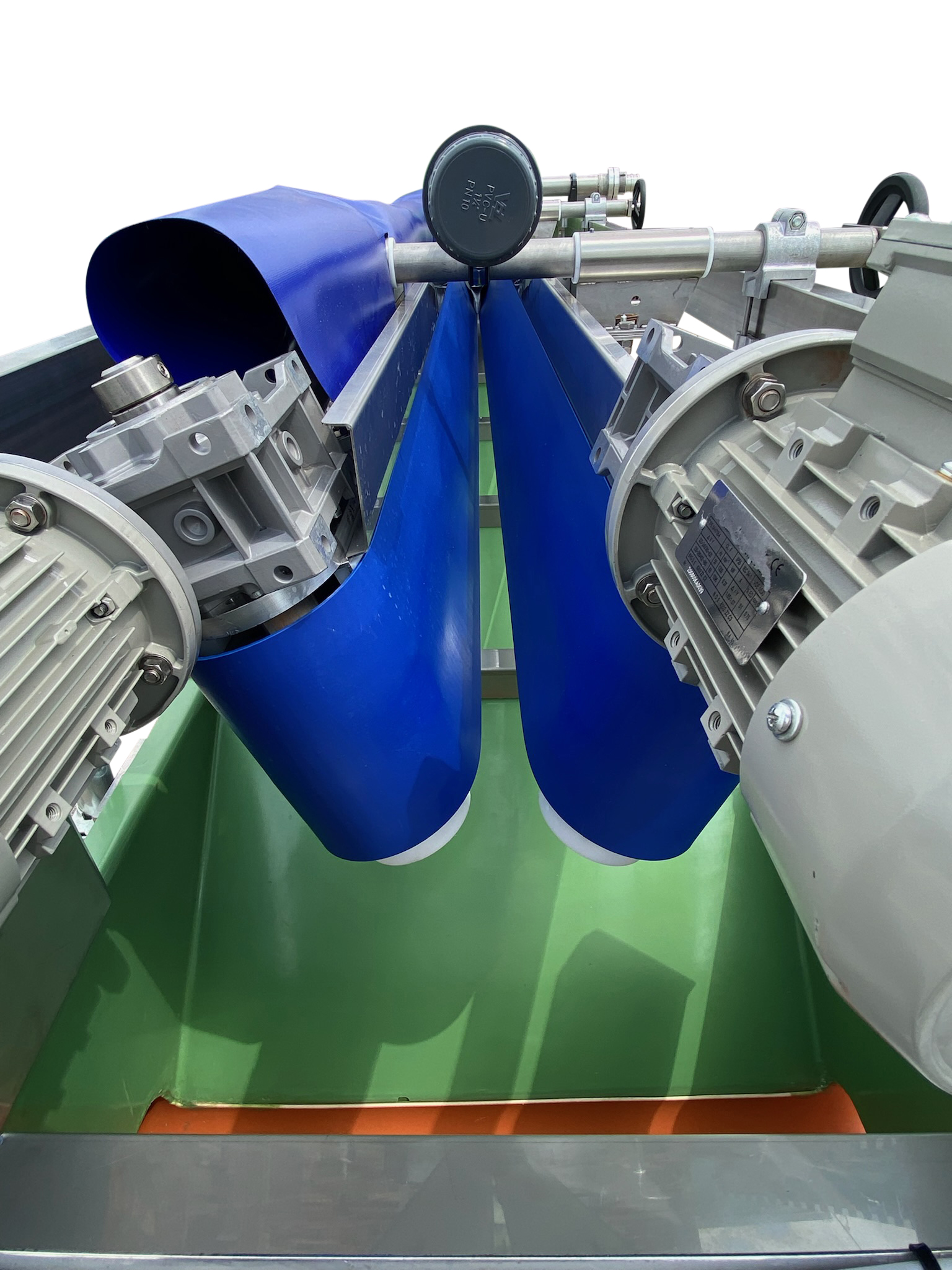

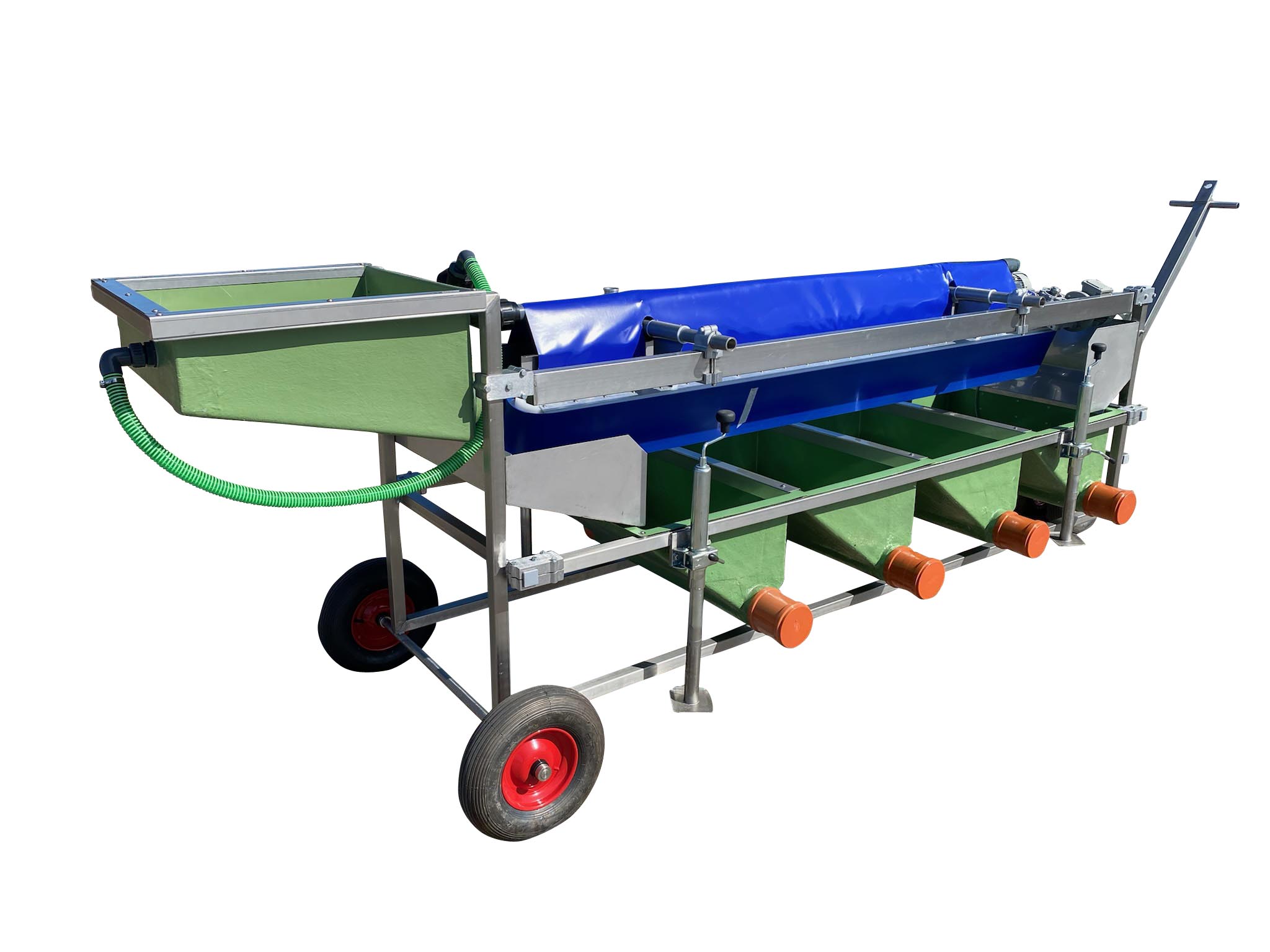

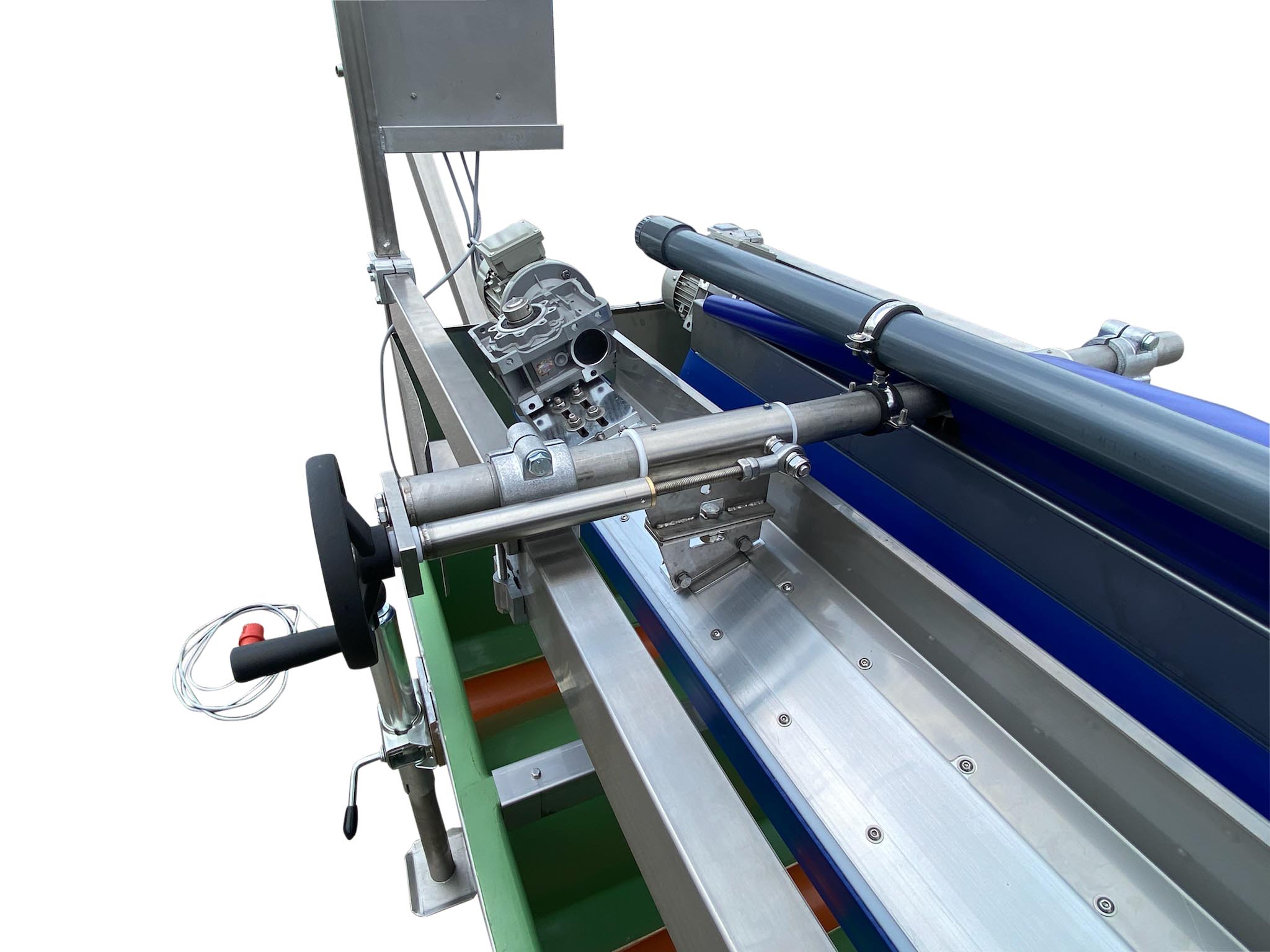

The conveyor belt is driven by a 230/380 V motor. Optionally, a more expensive, 24 V motor is available to power the sorting machine with a truck battery. The undercarriage with pneumatic tyres is made of hot galvanised steel while all other parts are made of stainless steel, plastics and aluminium.
The required water pump can be included with the delivery upon request.
