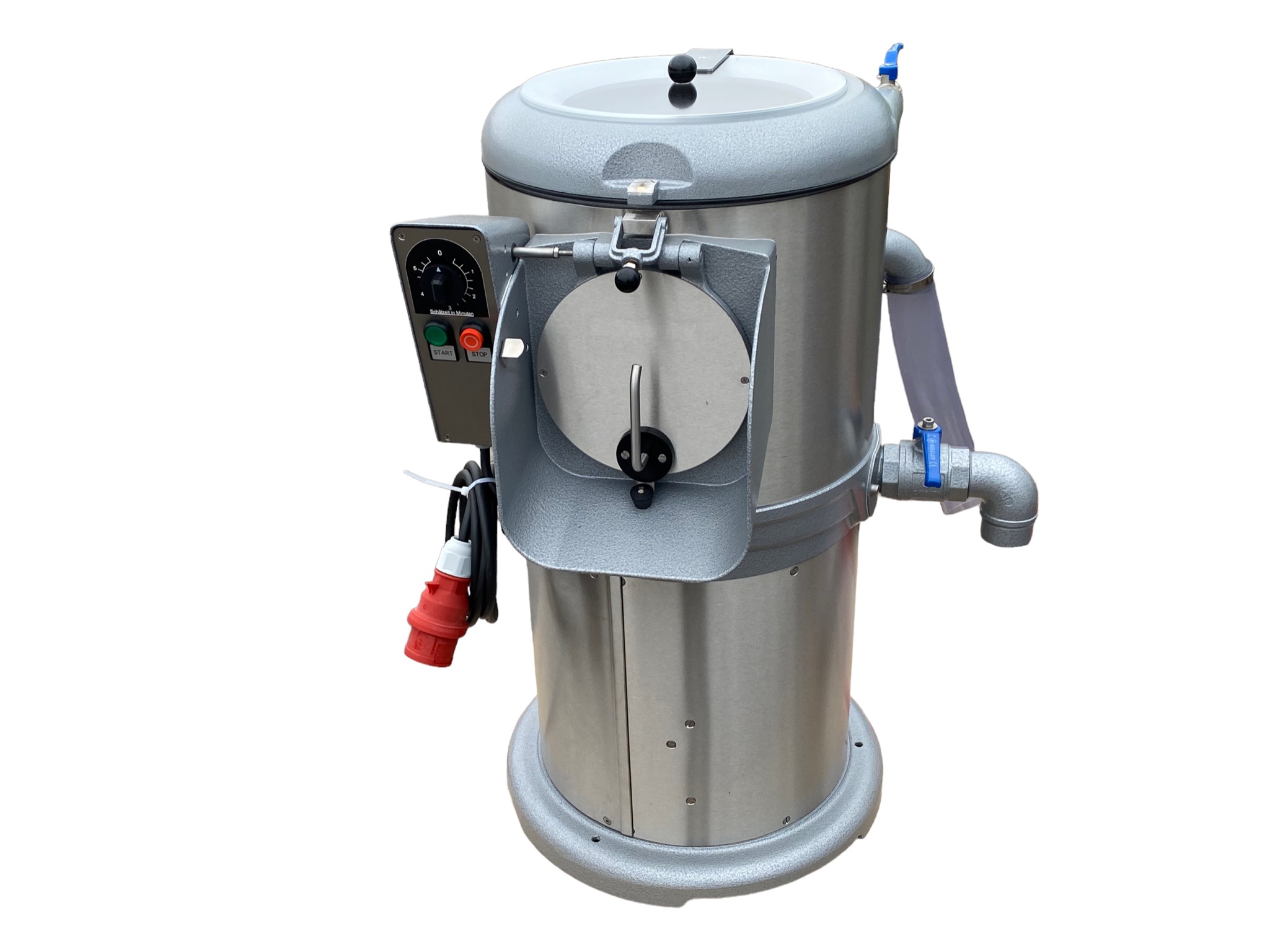

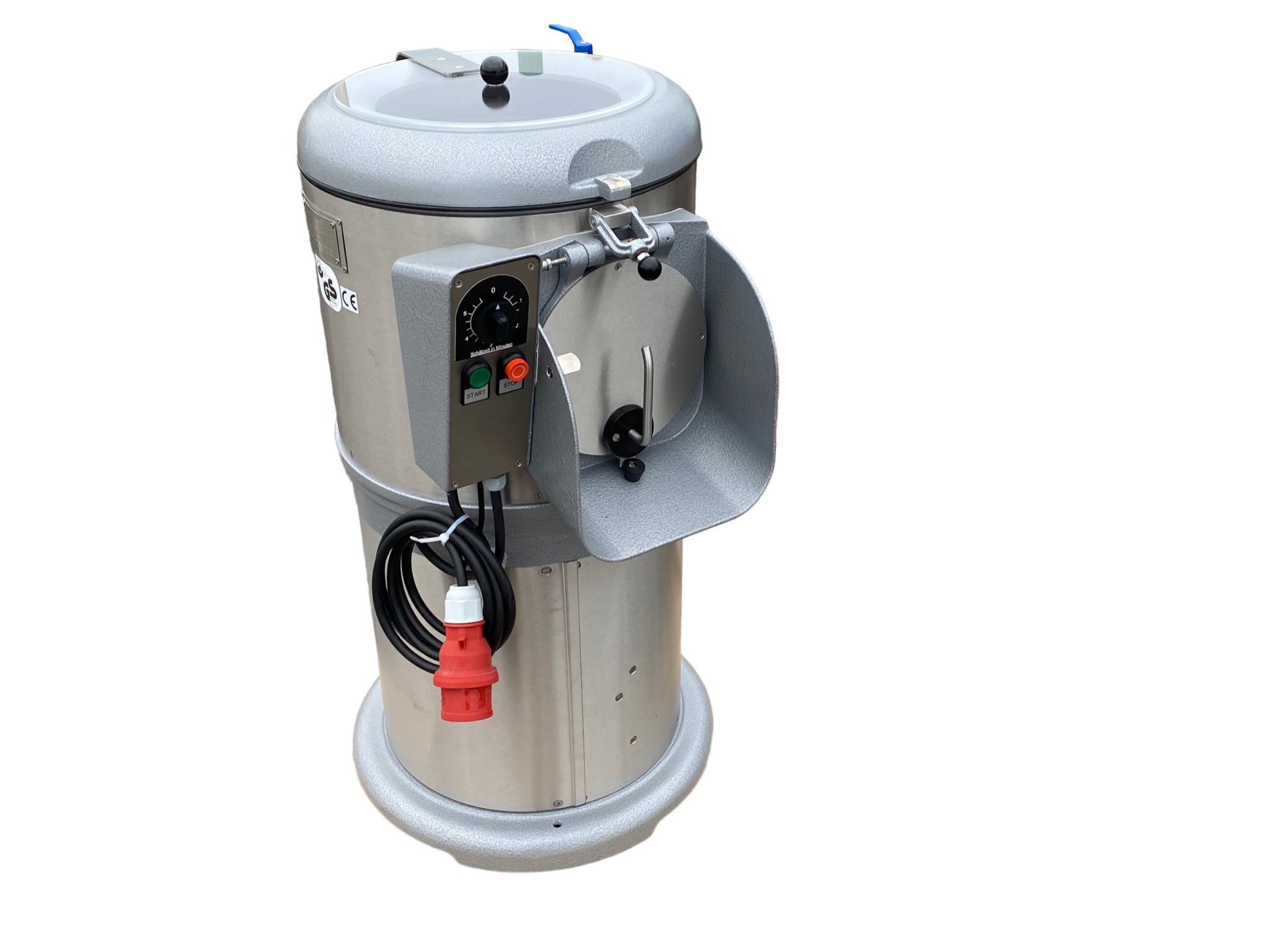

Fish Scaling Machine 10kg to 30kg

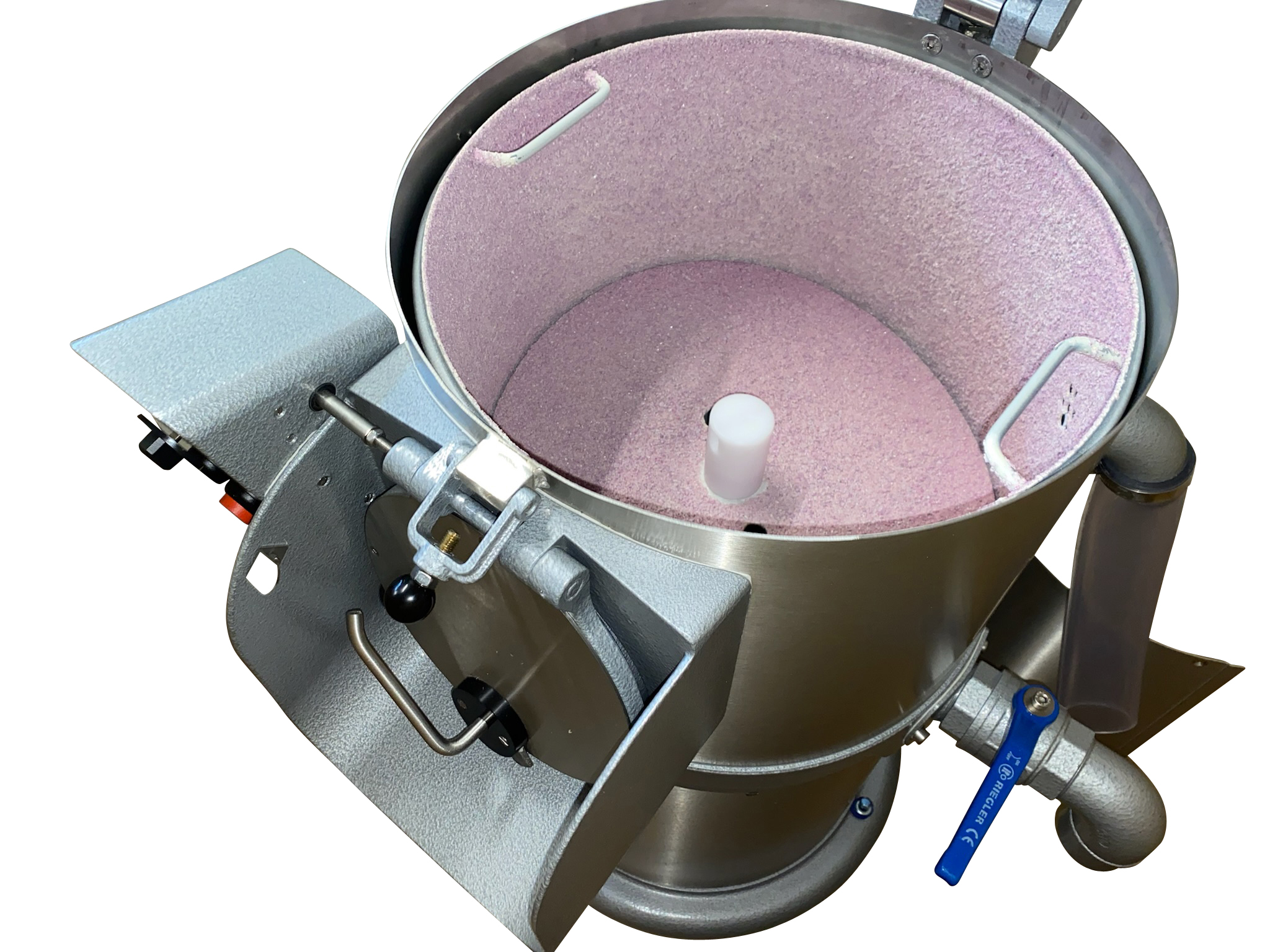

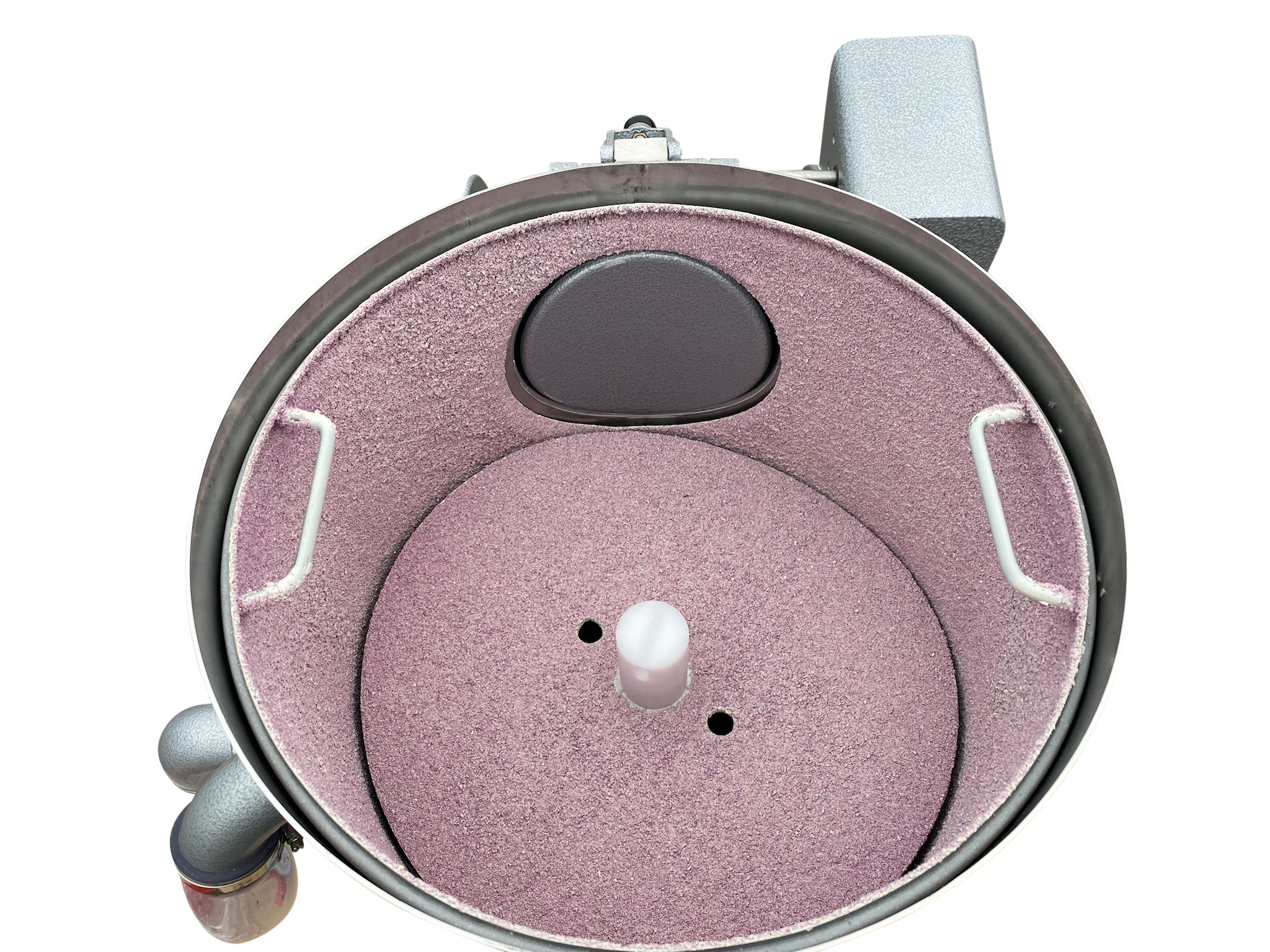

The pictured carborundum scaling device works very quickly and economically. It is one of the oldest and best known scaling systems. The cylinder rotates in a water bath which suspends the fish providing a float-elastic scaling process. This water cushion protects the fish from excessive physical damage as the forces are kept to a minimum. This is very important to protect and appealing appearance and ensure keeping quality after being scaled.
Technical data:
Three phase current 220/380V
3 m cable with perilex plug included carborundum (special voltages on request)
Art.-No. 25K/1 (Bild 2) for softer fish/small scales with carborundum drum
Technical data:
Scaling machine Art.-No. |
Motor KW |
Load per cycle kg |
Net weight kg |
Height mm |
Width mm |
18K |
0,37 |
10 |
62 |
990 |
555 |
20K |
0,55 |
15 |
94 |
1015 |
650 |
25K |
1,5 |
30 |
155 |
1230 |
750 |
Capacity: | 10 kg |
---|---|
Scalingsystem: | carborundum drum |
for motor power: | 0,37 kW/AC 3 phase |
