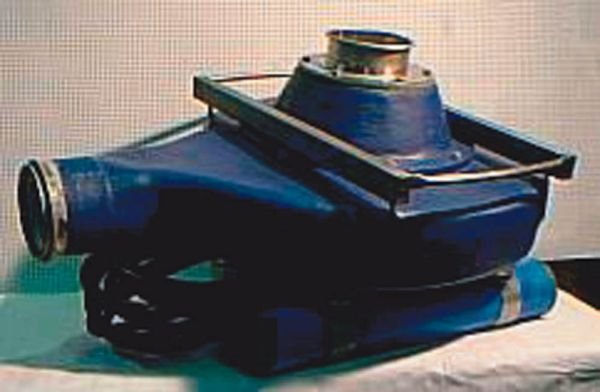

Fish pump complete

In case of need, it can be used as a water pump too.

This pump is in its functioning a very efficient innovation for the transport of fish from canals and ponds by pipe system of sorting device till the loading. Unsurpassed as a mobile fishloading or conveyor.

This pump is made of fibre glass, stainless, with a hydraulic motor, and so leightweight and portable. The system is with an electro-hydraulic pump station with infinitely variable speed control, water slide, tubes and different connecting branches.

The entire system can be delivered on a transport trolley with set up possibility for tubes and water slide.

The fish pump works under water and has different advantages:
The pump will be brought to the fish because it is leightweight. The fish must not be brought to the pump.

There is no vacuum, the fish is under pressure and there is no risk of injury. If there are leaks in tubes and connecting branches, they have no meaning.

The pump can be used in any direction, so there are different possibilities for fish intake.

Direct connection with the pond outlet, from the seine net, and filling with landing net.

With the pump station you control the pump speed and so the amount of fish, what is in connection with the sorting of special importance.

Instead of the hydraulic unit can also be used a tractor with hydrauliks with a power of 20l/min flow.
If such a machine would be available, the costs would be much lower. Please check our price list.

Technical Data:
Capacity:                                  10.000 kg per hour
Maximum delivery height:              5 m
Maximum delivery distance:           500 m
Maximum water capacity:             50 l/sec
Weight of pump:                         40 kg
Electric engine:                           3 kW or 4 kW
Hydraulic fluid flow-through:         20 l/min (tractor, mobile unit)
