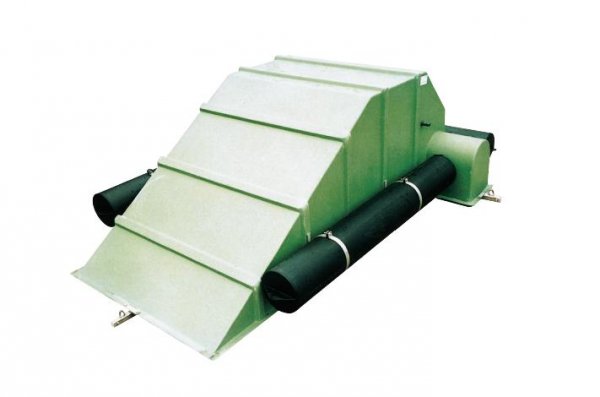

Paddlewheel Aerator O2 - Injection System
The top quality, highly effective alternative made in Germany. The AGK paddlewheel oxygen aerator has Technical Specifications: - Sealed shaft bearings prevent oxygen leakage
Paddlewheel Aerator O2
been developed by AGK based on the two-wheeled paddlewheel aerator and has been tested under the
most demanding of conditions. The latest development deliberately avoids the weak points inherent in
other well-known products. For example there is no oxygen loss through the shaft bearings. The special
shape of the oxygen cover prevents leakage of oxygen. Even bubbles of oxygen are prevented from
forming and ascending to the surface. Therefore loss is kept to a minimum. The equipment was
designed in order to keep the lifetime costs, i.e. the sum of purchase and operating costs (energy and
maintenance spending) to a minimum. This is achieved with the AGK paddlewheel O2 injection
systems’s long service life and the high degree of effectiveness.
Dimensions L x W x H: 2.5 x 1.78 x 1 m
Motor power consumption: 0.37 KW, 3 phase AC
Weight: approx. 110 Kg

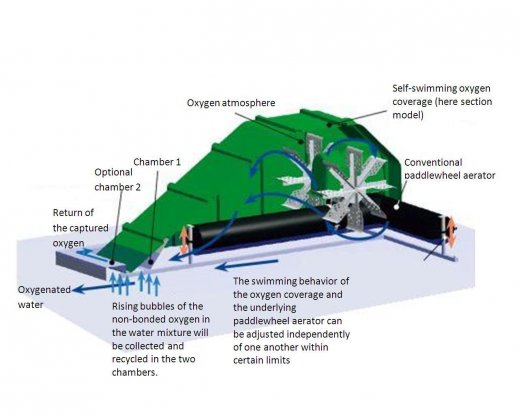

- Nearly bubble free water outlet through recycling of the non-dissolved oxygen under the oxygen cover
- Additional current in the water as side effect of the paddlewheels
- Paddles, shaft, frame as well as bevel gear shaft made of stainless steel.
- Bevel gear with approximately 30% higher mechanical efficiency than conventional worm drives.
- No couplings, clutch or Harde disks between paddlewheel shaft and drive leading to wear.
- Drive lubricated with water-friendly oil.
- Paddlewheel shaft mounted in four ball bearings with four waterproof seals.
- Float made of ozone- and UV-resistant material.
- Motor specially sealed against moisture.
| Power: | 0,75 |
|---|
| Product number | Power | Price | ||
|---|---|---|---|---|
|
3000000840 | €3,890.80 | ||
|
|
3000000839 | €4,118.02 |
