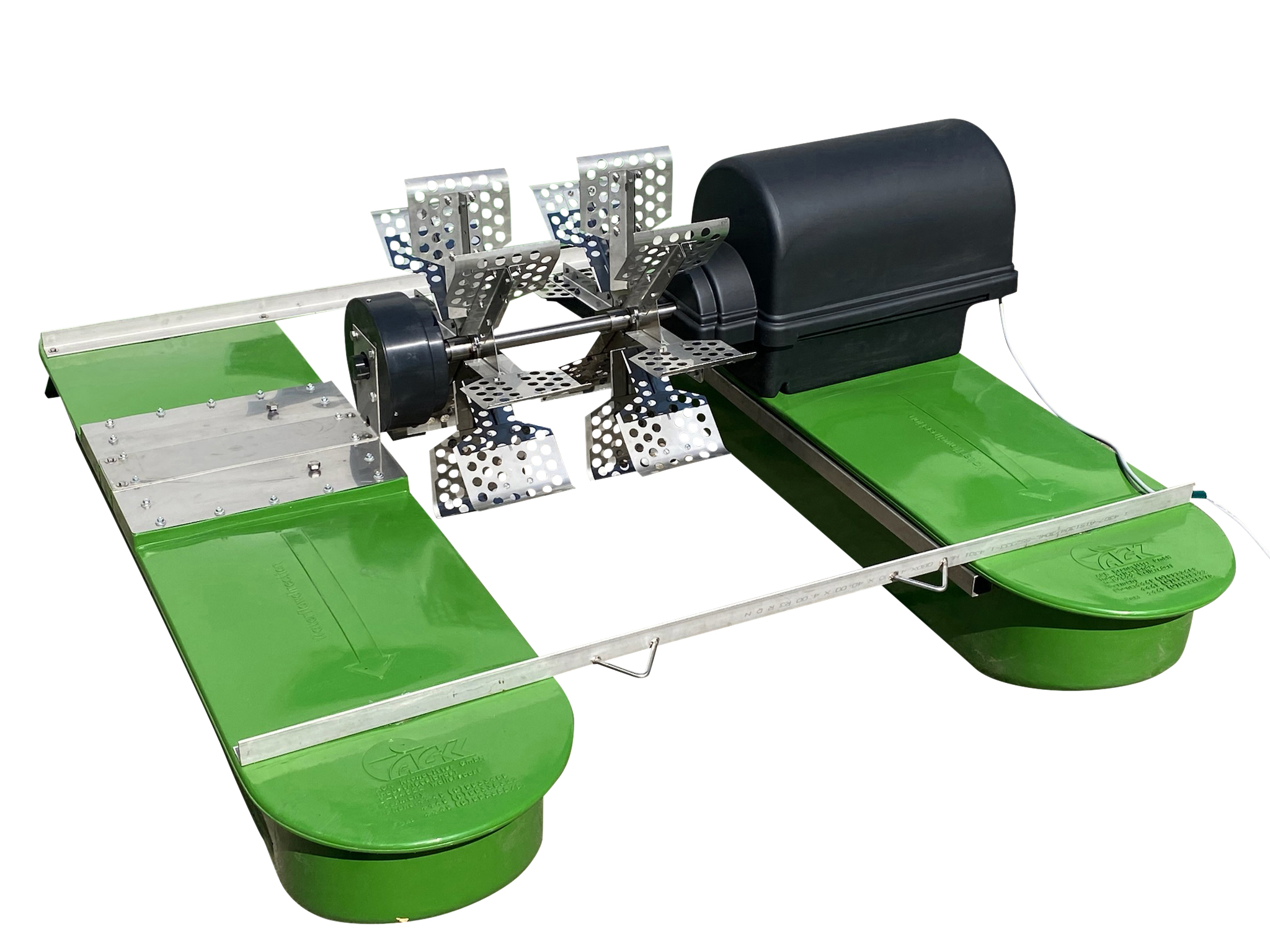

Paddlewheel aerators - 2 wheels
The top quality, highly effective alternative made in Germany. The AGK paddlewheel aerator developed by AGK and tested under the most demanding ofconditions. The latest development deliberately voids the weak points inherent in other well-known products.
The equipment was designed in order to keep the lifetime costs, i.e. the sum of purchase and operating costs (energy and maintenance spending) to a minimum. This is achieved with the AGK paddlewheel aerator’s long service life and the high degree of effectiveness.
Technical Specifications:
Paddlewheel speed: 124 rpm
Motor power consumption: approx. 1.0 KW (= 1.37 hp) for 3 phase AC, motor nominal output: 1.5 KW, also available as single phase AC, all tensions an frequencies available.
Weight: 117 Kg
Dimensions: L x W x H: 2.40 x 1.88 x 0.72 m
Delivery: paddlewheel aerator either fully assembled or in kit form for self assembly, reducing price and saving on shipping costs. Cable, plug and motor safety switch (not included) are supplied with the delivery when ordered.

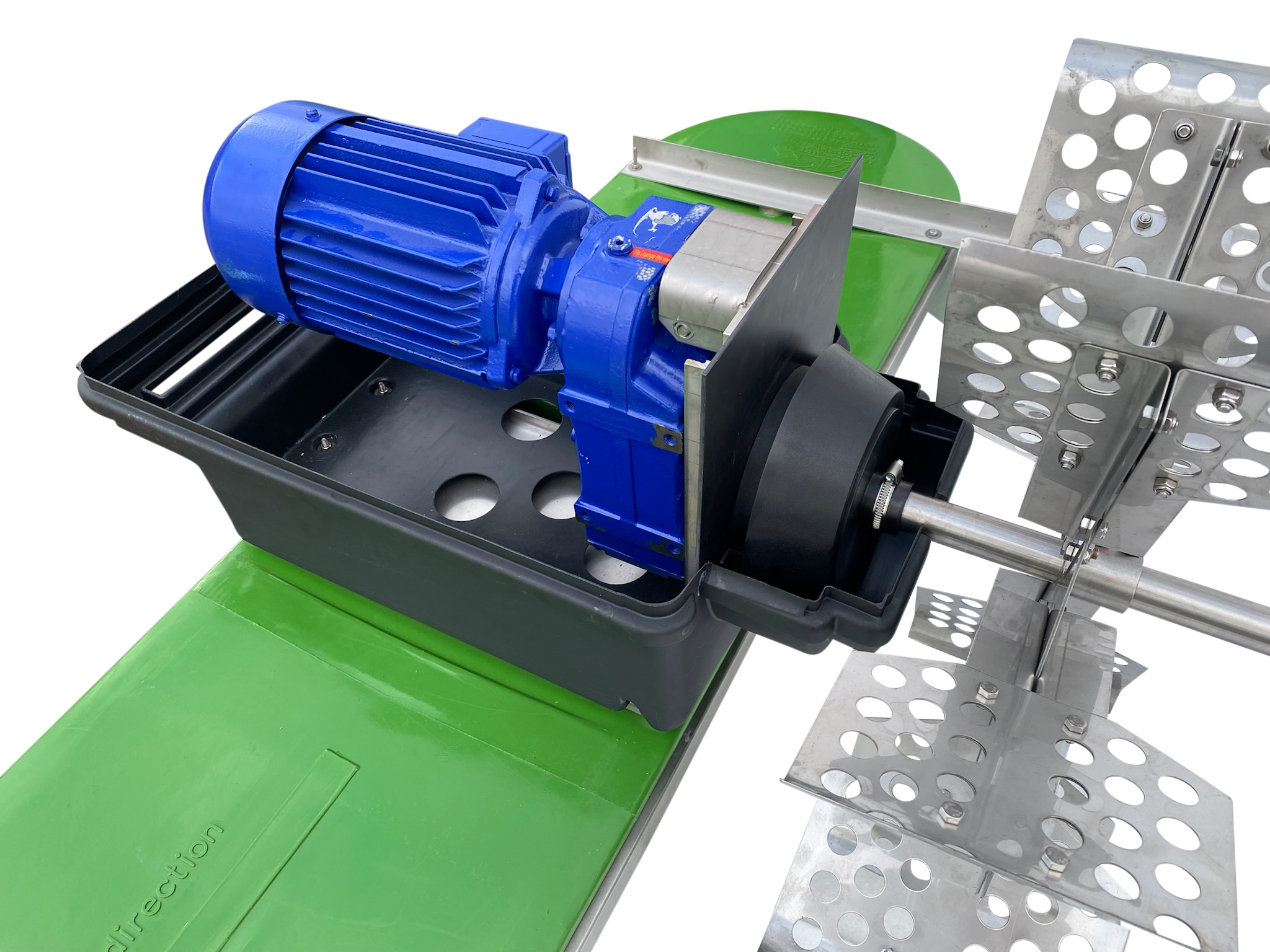

- Paddles, shaft, frame as well as bevel gear shaft made of stainless steel.
- Bevel gear with approximately 30% higher mechanical efficiency than conventional worm drives.
- No couplings, clutch or Harde disks between paddlewheel shaft and drive leading to wear.
- Drive lubricated with water-friendly oil.
- Paddlewheel shaft mounted in four ball bearings with four waterproof seals.
- Float made of ozone- and UV-resistant material.
- Motor specially sealed against moisture.
| Voltage DS / WS: | 380V - 420V |
|---|
| Product number | Voltage DS / WS | Montagezustand | Price | ||
|---|---|---|---|---|---|
|
|
3000000795 | * Fertig montiert | €1,939.02 | ||
|
3000000837 | * Fertig montiert | €2,068.57 |
