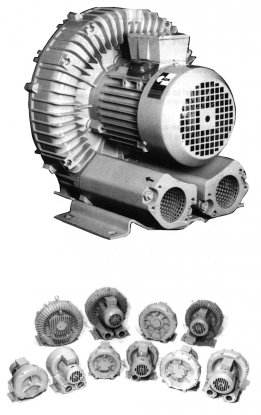

Ring Compressor BH for Pond Aeration and Fish Keeping

Product number: 20506

Price on request

Prices incl. VAT plus shipping costs

Connection diameter
Voltage V
Consumption Kw
Do you have further questions about this article?
Product information "Ring Compressor BH for Pond Aeration and Fish Keeping"

The compressors should be installed in an elevated, covered and protected place up to 1 m above the maximum water level. Solid bodies and particles may not be aspirated. Hence it is advisable to connect a filter to the inlet.
It is essential to provide correct electrical connections as water may otherwise be sucked through the blower.
The right direction of rotation is indicated by an arrow on the body. The entire network of air pipes and hoses must drop away from the compressor towards the distributors to prevent water pockets from condensation water.
Let us work out a precisely detailed offer for your hatchery or fish farm. Just send us a dimensioned sketch showing the lay-out and size (length, width and depth) of the ponds
and tanks in relation to each other as well as the planned site of the ring compressor(s).

When the immersion depth of the diffusers is less than above, the hourly capacity increases.
Available variants from 0.25 kW to 2.2 kW, three-phase or pure alternating current, please specify on request.
Connection diameter: 1 1/4 ''
Consumption Kw: 230/400
Voltage V: 0,4
Variants
Product number Connection diameter Voltage V Consumption Kw Einblastiefe mm weight Kg Luftleistung L/Std. Anzahl Kreuzausströmer Price
Ring Compressor BH for Pond Aeration and Fish Keeping 20504WS 1 1/2'' 1,1 380 1200 19 220000 23-30 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20509WS 1 1/2'' 380 1,50 1600 21 220000 23-30 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20504 1 1/2'' 1,1 230/400 1200 19 220000 23-30 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20507WS 1 1/2'' 0,75 380 1000 18 140000 16-22 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20507 1 1/2'' 230/400 0,75 1000 18 140000 16-22 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20505 1 1/2'' 0,2 230/400 650 7 40000 4 - 6 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20508 1 1/2'' 230/400 1,1 1200 18 140000 16-22 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20510 1 1/2'' 2,2 400 1800 22 220000 23-30 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20505WS 1 1/2'' 0,2 380 650 7 40000 4 - 6 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20506 1 1/4 '' 0,4 230/400 1000 10 90000 12-15 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20506WS 1 1/4 '' 0,4 380 1000 10 90000 12-15 Price on request
Ring Compressor BH for Pond Aeration and Fish Keeping 20509 1 1/2'' 1,50 230/400 1600 21 220000 23-30 Price on request
