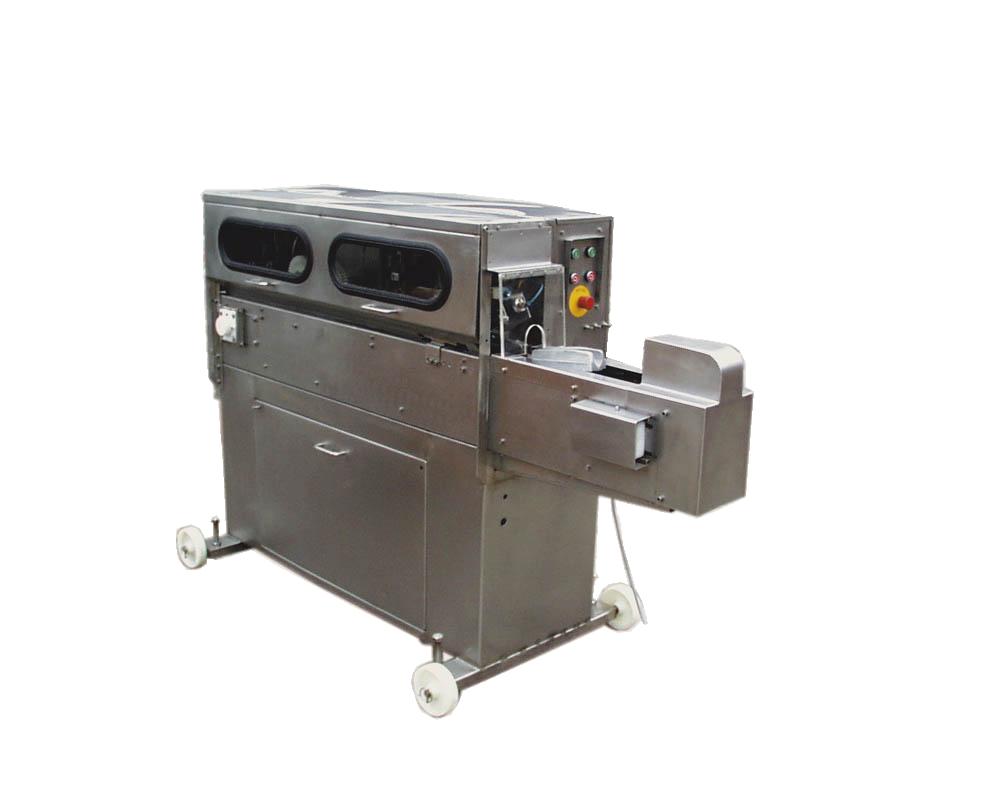

Trout Gutting Machine - fully automatic
Notice:
The machine currently is under modification and not available for the next time.
--------------------------------------------------------------------
With this gutting machine trouts and fish with similar form can be gutted.
Fish pick-ups provide unsurpassed slaughter results.
The operations are independently controlled through compressed-air cylinders and control valves.
The machine is designed to serve in large business operations in its performance, capacity and yield.

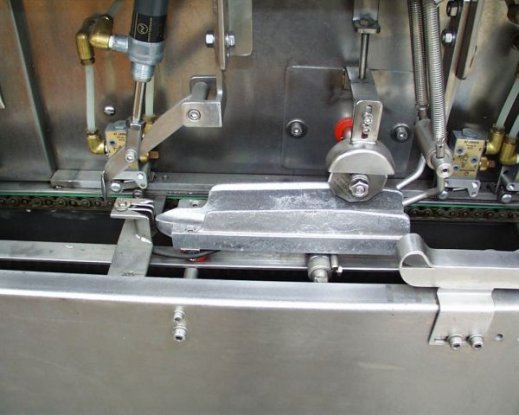

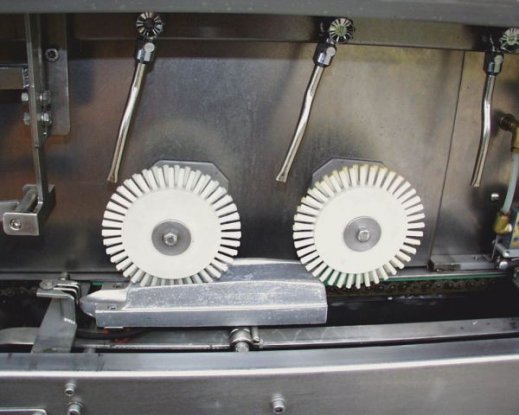

The fish is stuck onto a pick-up by its gill-covers. It is fed head first, on its back into the machine. A retainer holds it down for opening by a fixed knife. Both abdominal lobes are pulled aside for easy access of the gutting mechanisms. A pneumatic gutter takes out the complete intestine. The inside of the fish is subsequently rinsed and cleaned by two rotating brushes who themselves are cleared off blood and other residues by spring loaded scrapers.
The fish leaves the machine kitchen-ready.
Feel free to take advantage of our demonstration offer!
In this case sea bass is processed.
Technical Description of the standard version
It is comprised of:
1. two side pieces 2.0 m made of V2A stainless steel
2. one guide rail, adjustable to the size of the fish
3. two parallel chain belt drives with pick-ups
4. pneumatic motor for lateral cutting of the gorge
5. cutting unit with guide for abdominal lobes
6. pneumatic gutter
7. two rinsing brushes, spring suspended
8. two water nozzles
9. built in electrical switchbox
10. three electric motors
11. compressed-air maintenance unit
Technical Description of the maxi version
It is comprised of:
1. two side pieces 2.0m made of V2A stainless steel
2. one guide rall, adjustable to the size of the fish
3. two parallel chain belt drives with pick-ups
4. pneumatic motor for lateral cutting of the gorge
5. cutting unit with guede for abdominal lobes
6. pneumatic gutter
7. scraper for the brushes
8. two rinsing brushes, spring suspended
9. two water nozzles
10. built in electrical switchbox
11. three electric motors
12. compressed air maintenance unit
Operation of the machine
Technical data Standard
water feed 1/2"
power supply: 2 x 0,37 KW, 1 x 0,25 KW, 380 V
capacity: 1000 trout/hour
workers required: 1
length: 2,0 m
width: 0,9 m
height: 1,55 m
weight: 150 kg
fish size: 180 – 600 g, depending order
tolerance: 150 g
Technical data Maxi
water feed 1/2"
power supply: 2 x 0,37 kW, 1 x 0,25 kW, 380 V
capacity: 1800 trout/hour
workers required: 1
length: 2,5 m
width: 0,9 m
height: 1,55 m
weight: 250 kg
fish size: 180-800 g, depending order
tolerance: 150 g
The standard machine requires a compressor with an air capacity of 150 – 200 l/min.
The maxi machine requires a compressor with an air capacity of 250 - 300l/min.
Stanard/Maxi: | Maxi |
---|
