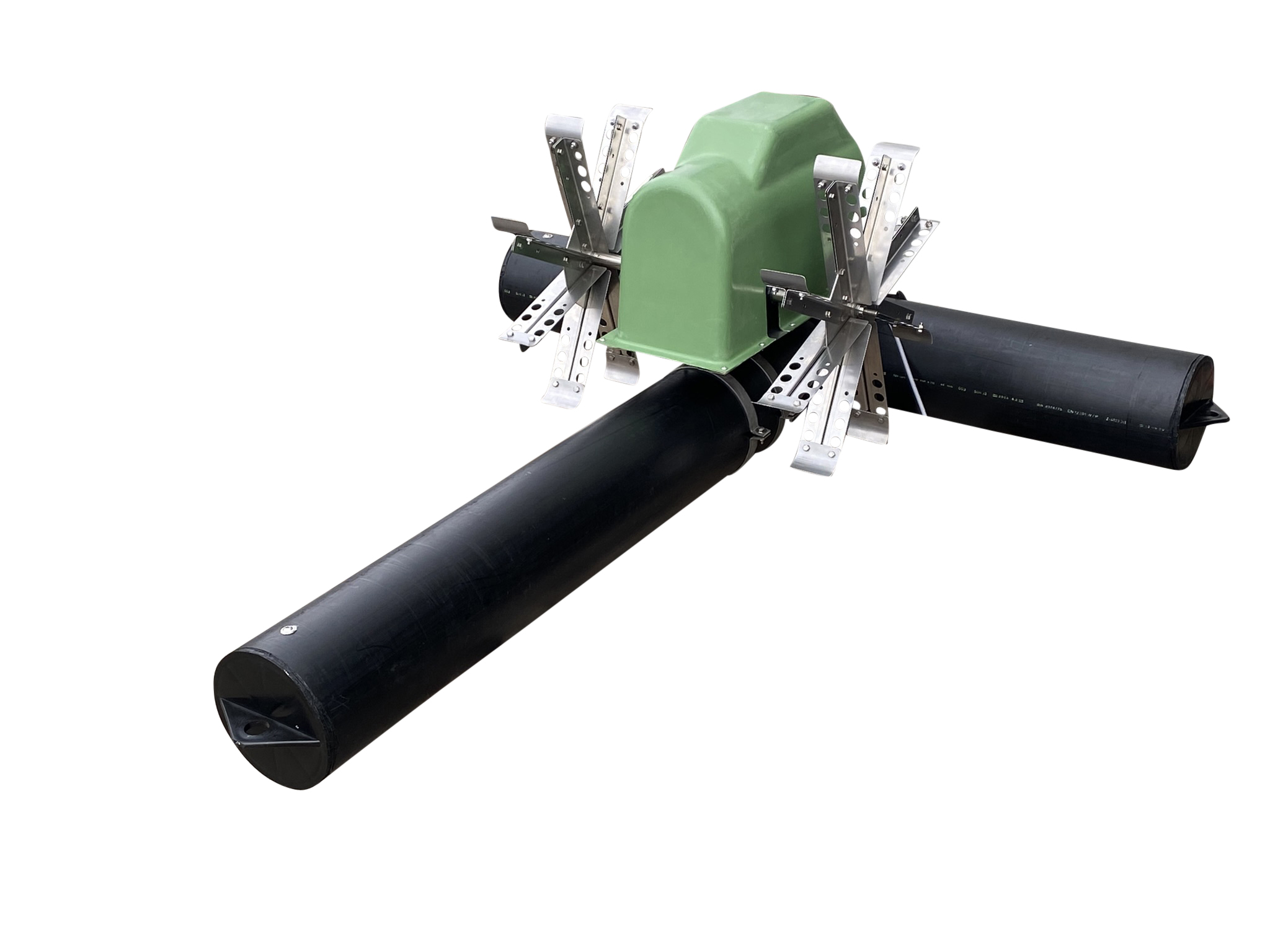

paddle-wheel aerator 2 wheels
The top quality, highly effective alternative with a worm drive made in Germany. The AGK paddlewheel
aerator has been developed by AGK and has been tested under the most demanding of conditions. This
product also avoids the weak points inherent in other well-known products. This new generation of
paddlewheel aerators does not need any additional bearings of the paddlewheel shaft, it is solely
suspended by the drive. Thus the number of wear-prone component is reduced while friction is reduced
and the mechanical efficiency is improved. The equipment was designed in order to keep the lifetime
costs, i.e. the sum of purchase and operating costs (energy and maintenance spending) to a minimum.
This is achieved with the AGK paddlewheel’s long service life and the high degree of effectiveness even
with a worm drive.
Technical Specifications:
RPM of the paddlewheel: approx. 140
Motor power consumption: 0.25 KW
Weight: 15 - 40 Kg
Dimensions L x W x H: 1.5 x 1.4 x 0.6 m
- Paddles, shaft, frame as well as bevel gear shaft made of stainless steel.
- High efficiency worm drive
- No couplings, clutch or Harde disks between paddlewheel shaft and drive leading to wear.
- Paddlewheel shaft suspended by the drive, thus no need for additional wear-prone bearings
- Drive lubricated with water-friendly oil.
- Paddlewheel shaft mounted in four ball bearings with four waterproof seals.
- Float made thick-walled PE.
- Motor specially sealed against moisture.
| Power: | Three-phase current |
|---|---|
| Power: | 0,55 |
| Product number | Power | Power | Price | ||
|---|---|---|---|---|---|
|
3000000930-1 | Three-phase current | €930.24 | ||
|
3000000931 | Alternating current | €976.87 | ||
|
3000000844 | Three-phase current | €1,056.72 | ||
|
3000000932 | Alternating current | €1,102.62 | ||
|
3000000843 | Three-phase current | €1,162.80 | ||
|
3000000933 | Alternating current | €1,218.90 | ||
|
|
3000000842 | Three-phase current | €1,305.60 | ||
|
3000000841 | Three-phase current | €1,335.18 | ||
|
3000000934 | Alternating current | €1,377.00 | ||
|
3000000937 | Alternating current | €1,409.63 |
